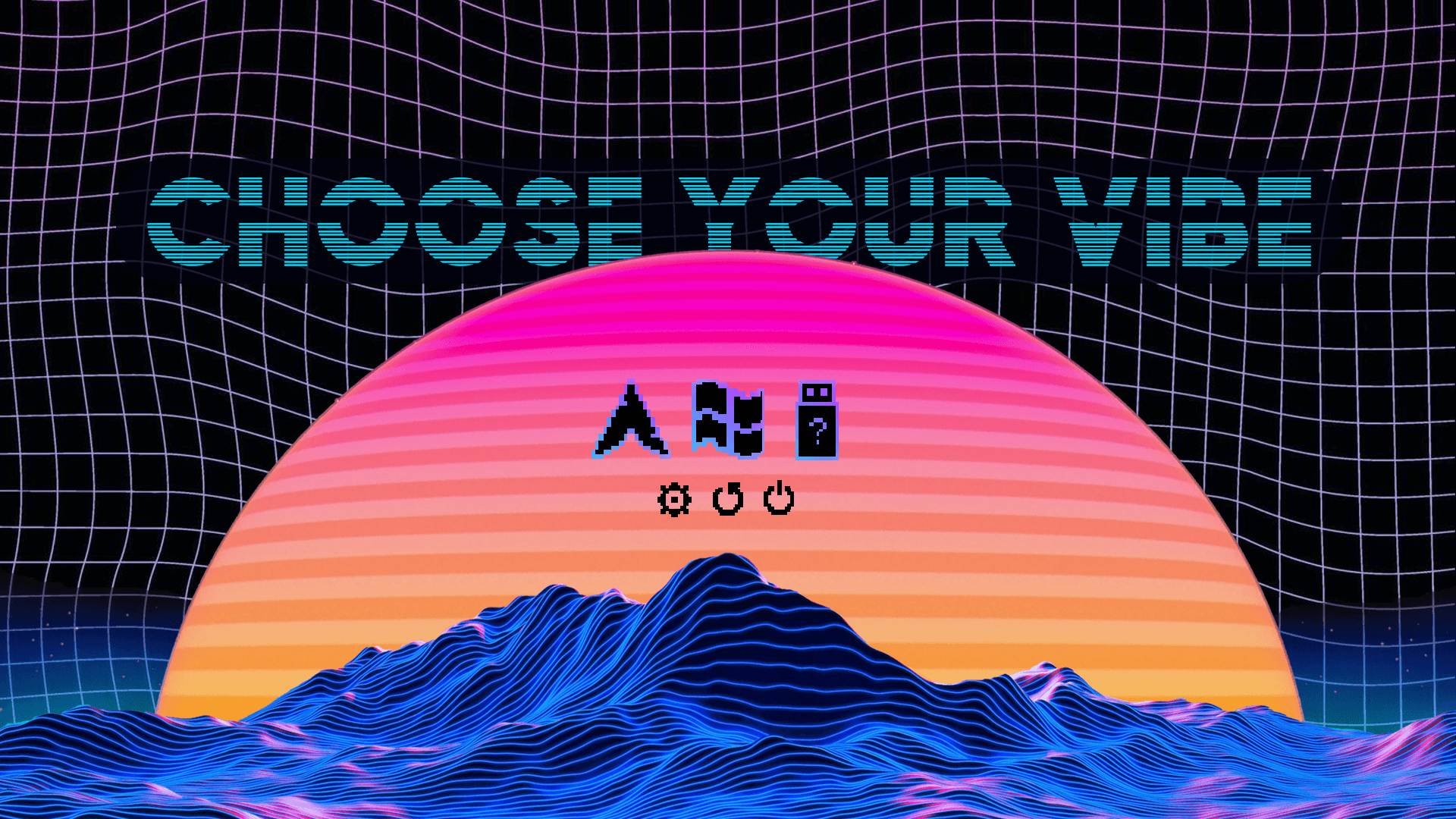

rEFInd-Synthwave: Custom UEFI Boot Manager Theme

Overview & Problem Statement

Most modern operating system boot screens are visually clinical, generic, and uninspiring, utilizing low-resolution text menus or simple monochrome loading indicators. While the rEFInd boot manager provides a highly customizable and robust platform to coordinate multi-boot environments, creating a visually cohesive, high-fidelity theme requires manual calculation of raw pixel grids, precise alignment configurations, and strict partition pathway mapping.

Furthermore, applying custom visual configurations directly to the EFI System Partition (ESP) introduces critical system-level risks. Syntax errors or mismatched asset assets can cause pre-boot hangs, obscure native boot paths, or trigger critical system initialization failures.

rEFInd-Synthwave bridges high-end retro aesthetics with system configuration safety. It packages hand-drawn, high-contrast neon-styled OS vectors with a verified bootloader binary fallback matrix and clear system restoration pathways.

Architectural & Directory Breakdown

Because bootloaders initialize during the early phases of the UEFI framework—long before display servers, graphical desktop environments, or high-level kernel display drivers are active—they rely on a strict file placement hierarchy within the ESP:

1. EFI System Partition (ESP) Layout

On a standard system, the target layout inside the mounted EFI partition follows this layout:

/boot/efi/
└── EFI/
    └── refind/
        ├── refind_x64.efi      # Primary bootloader executable binary
        ├── refind.conf         # Main layout definition & visual settings configuration
        ├── assets/
        │   ├── background.png  # High-fidelity retro synthwave grid vector backdrop
        │   ├── selection_big_v3.png   # Glowing magenta active selection tile border
        │   └── selection_small_v3.png # Active utility icon selection backdrop
        └── icons/
            ├── os_arch.png     # Hand-crafted neon Arch Linux/CachyOS icon
            ├── os_win.png      # High-contrast Windows boot option icon
            ├── os_ubuntu.png   # Ubuntu vector configured for the theme palette
            └── ...             # Integrated system utilities and power state controls

2. Configuration Injection (refind.conf)

Absolute control over the user interface layout is obtained by establishing explicit overrides within the initialization parameters:

• banner: Replaces the generic gray interface with an uncompressed, deep indigo-to-violet synthwave canvas.
• icons_dir: Reroutes rEFInd's layout system to target the theme's isolated custom asset folder instead of fallback built-ins.
• selection_big / selection_small: Dynamically renders glowing custom neon borders behind the currently active operating system or utility tool selection.
• hideui: Suppresses legacy single-user badges, generic text labels, text hints, and raw UI arrow indicators to achieve a minimal, purely graphical user interface.

Overcoming Low-Level Hardware Constraints

Designing for the pre-boot UEFI layer requires working around unique technical and hardware environment limitations absent from traditional web or software design:

1. Alpha Transparency & Scaling Limitations

In a pre-boot environment, high-level anti-aliasing engines and complex alpha-channel transparency maps are unavailable. Elements are painted directly to primitive UEFI framebuffers.

• Icons were compiled with sharp contrast edges and vector neon glows optimized for basic hardware rasterization.
• Strict pixel dimensions are maintained for visual scaling to prevent jagged line artifacts on Ultra-HD and high-DPI displays.

2. Version Parity & Upstream Fallbacks

Upstream structural updates to boot managers can occasionally introduce rendering regressions or compatibility hitches depending on specific laptop display controllers or GPU hardware layers. To guarantee continuous bootability, the project includes a pre-packaged, tested stable release artifact: rEFInd version 0.14.1. If an update introduces instability, users have access to a known, working platform matrix.

Security Protocol and ESP Protection

Interacting with pre-boot files demands structured safety operations. The codebase provides step-by-step restoration workflows to isolate modifications away from active boot configurations until verified.

1. Pre-Flight Backup Baseline

Before modifying any live assets on the ESP, users establish an explicit recovery point:

# Captures an un-modified operational target state
sudo cp -r /boot/efi/EFI/refind /boot/efi/EFI/refind.backup

If path changes inadvertently mask target kernels, the system can be completely restored back to its baseline operational state inside any standard live recovery USB terminal.

2. Asset Deployment

Once isolated, the old directory configurations are purged and replaced cleanly:

# Purge standard stock icons to prevent path conflicts
sudo rm -rf /boot/efi/EFI/refind/icons

# Map the new theme infrastructure directly to the active path
sudo cp -r icons /boot/efi/EFI/refind/
sudo cp -r assets /boot/efi/EFI/refind/
sudo cp refind.conf /boot/efi/EFI/refind/refind.conf

Core Configuration Reference Matrix

Technical Outcomes

rEFInd-Synthwave converts a stark, system-level functional screen into a polished, retro-futuristic graphical environment. By utilizing verified software versions, strict partition directory mapping, and rock-solid system fallback procedures, the theme successfully combines deep visual customization with absolute pre-boot layer safety.
